u-blox UBX-R5 (SARA-R510S) LTE-M/NB-IoT Basic Floorplan Report

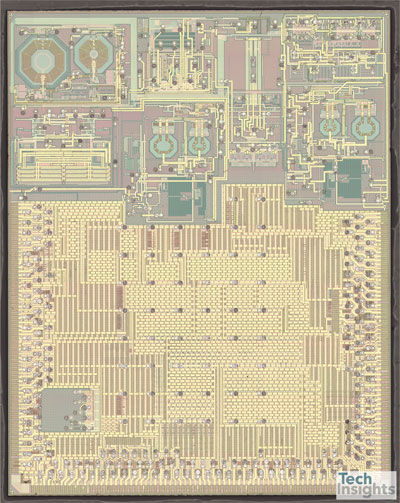

This report presents a Basic Floorplan Analysis of the u-blox UBX-R5030 RF transceiver found inside the u-blox UBX-R5231-BB.

This report contains the following detailed information:
  • Selected teardown photographs, package photographs, package X-rays, die markings, and die photographs
  • SEM cross-sectional micrographs of the general structure of the die dielectric materials, major features, and transistors
  • Measurements of vertical and horizontal dimensions of major microstructural features
  • Plan-view optical micrograph of the die delayered to the polysilicon layer
  • Identification of major functional blocks on a polysilicon die photograph
  • Table of functional block sizes and percentage die utilization
  • High-resolution top metal and polysilicon die photographs delivered in the CircuitVision software
  • Cost of die and tested packaged die, based on the manufacturing cost analysis of the observed process
