Intel/Micron MT29F512G08EBHBF-R_B Selected Block Circuit Analysis Report

Contact Us

Product Code
CAR-2002-801
Release Date
28/02/2020
Availability
Published
Product Item Code
MIC-MT29F512G08EBHBFJ4-R_B
Device Manufacturer
Micron Technology
Device Type
NAND Flash
Subscription
Memory - NAND & DRAM
Channel
Memory - NAND Circuit Analysis
Report Code
CAR-2002-801

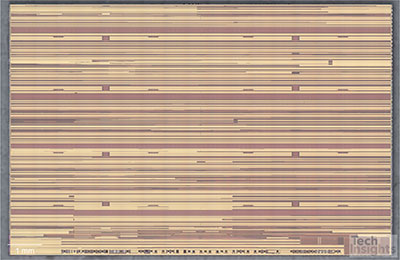

The following is a CircuitVision Analysis report on the Micron Technology MT29F512G08EBHBF-R_B, 96-layer 3D NAND flash memory (B27A die). The following report contains a full set of schematics and annotated photographs divided into the following sections:
  • Architectural Overview
  • Array and Peripherals
  • Data Path
  • Symbol Definitions
  • Major Findings
  • Standard Cells
  • Appendix A - Signal List
View Table of Contents
