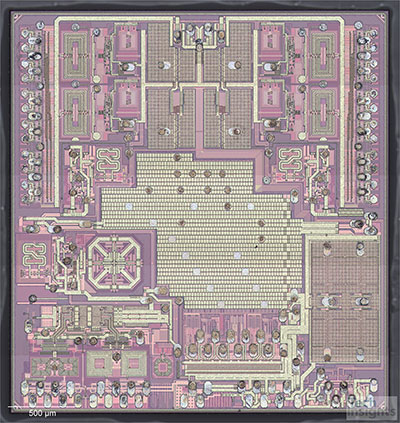

Spreadtrum (UNISOC) SR3593A RF Transceiver Architecture Report

Contact Us

Product Code
ARC-2102-803
Release Date
29/07/2021
Availability
Published
Product Item Code
SPR-SR3593A
Device Manufacturer
SPREADTRUM
Device Type
RF Transceiver
Subscription
Mobile RF
Channel
Mobile RF - Transceiver Architecture
Report Code
ARC-2102-803
The following is an RF architecture analysis of the Spreadtrum (now UNISOC) SR3593A RF transceiver. The following report contains a schematic showing the RF architecture and annotated photographs divided into the following sections:
  • General Overview
  • RF Architecture
  • SR3593A vs. SR3595D Comparison
View Table of Contents
Download Sample Report
