Spreadtrum SR3593A RF Transceiver Floorplan Report

Product Code
BFR-2102-805
Release Date
02/09/2021
Availability
Published
Product Item Code
SPR-SR3593A
Device Manufacturer
SPREADTRUM
Device Type
RF Transceiver
Subscription
Mobile RF
Channel
Mobile RF - Transceiver Floorplan
Report Code
BFR-2102-805

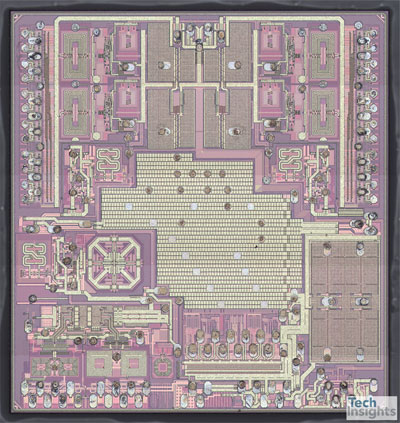

This report presents a Basic Floorplan Analysis of the SR3593A die found inside the Spreadtrum/UNISOC SR3593A package.

This report contains the following detailed information:
  • Selected teardown photographs, package photographs, package X-rays, die markings, and die photographs
  • SEM cross-sectional micrographs of the general structure of the die dielectric materials, major features, and transistors
  • Measurements of vertical and horizontal dimensions of major microstructural features
  • Plan-view optical micrograph of the die delayered to the polysilicon layer
  • Identification of major functional blocks on a polysilicon die photograph
  • Table of functional block sizes and percentage die utilization
  • High-resolution top metal and polysilicon die photographs delivered in the CircuitVision software
  • Cost of die and tested packaged die, based on the manufacturing cost analysis of the observed process
