OmniVision OX08B4C 8.3 MP CMOS Image Sensor Package Analysis

Product Code
PKG-2206-803
Release Date
02/08/2022
Availability
Published
Product Item Code
OMN-OX08B4C
Device Manufacturer
OmniVision
Device Type
CMOS Image Sensor
Report Code
PKG-2206-803
This report presents a package analysis (PKG) of the OmniVision OX08B4C 8.3 MP CMOS image sensor, extracted from the Sensing World SG8-OX08BC-GMSL2 automotive camera. The OmniVision OX08B4C features 140 dB HDR and LED flicker mitigation (LFM) for use in front-view automotive applications.
The PKG includes observed device metrics and salient features supported by the following unannotated image folders:
  • Package photographs and X-ray images

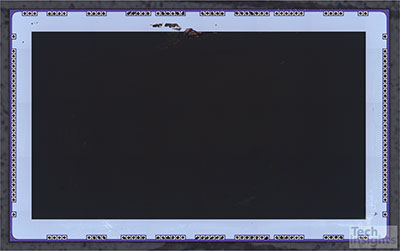

  • Die photographs
  • Optical and SEM package cross-section photographs
  • SEM-EDS spectra of selected package materials
The image set for a PKG project is derived from a package cross sectional analysis, supplemented by jet etch decapsulation, when applicable. Value added information, such as additional planes of cross-sectioning, may be included on a case-by-case basis. The PKG deliverable provides competitive benchmarking information and enables cost-effective tracking of multiple competitors' technology.
