Posted: September 21, 2012
Apple is considered by many to be the leader of the smartphone market. Within 5 years, Apple has generated over $150 billion in revenue from the iPhone family of handsets and accessories (according to research firm Strategy Analytics) and over 100 million units of the iPhone itself have been purchased by consumers. With an estimated 2 million units sold via Apple’s online pre-order system for their latest handset, the Cupertino-based company doesn’t plan on relinquishing that title of “king of the smartphone” any time soon. Touted by many as the most innovative iPhone since its introduction – the Apple iPhone 5 offers Apple’s first re-design of their flagship product since the “squaring” of the iPhone 4. The iPhone 5 marks Apple’s first time moving beyond their 3.5” touchscreen comfort zone, with the introduction of a lengthened 4.0 inch screen.
As the first of the iPhone family to divert from its traditional 3.5 inch screen, the latest iPhone now boasts a larger Retina display with a resolution of 1136 x 640 and 326 pixels per square inch (ppi). The design of the Apple iPhone 5 with its larger size also re-introduces the front-to-back manufacturing model that was last seen with the iPhone 3GS. One wonders if Foxconn, the electronics manufacturing facility of choice for Apple, had any influence in the design change as front-to-back manufacturing would make for easier assembly.
Since the introduction of the iPhone by Apple in January of 2007, the handset has been the very definition of “iterative improvement”. The first iPhone, with its multi-touch screen and application-based environment, was considered revolutionary to the smartphone segment. Since that time, there has been five generations of iPhone models, each one improving on the model preceding it. Marketed as the most dramatic improvement of the iPhone – does the iPhone 5 really differ much from its descendents? Let’s take a look inside to understand what changes at the component level the iPhone 5 reveals.

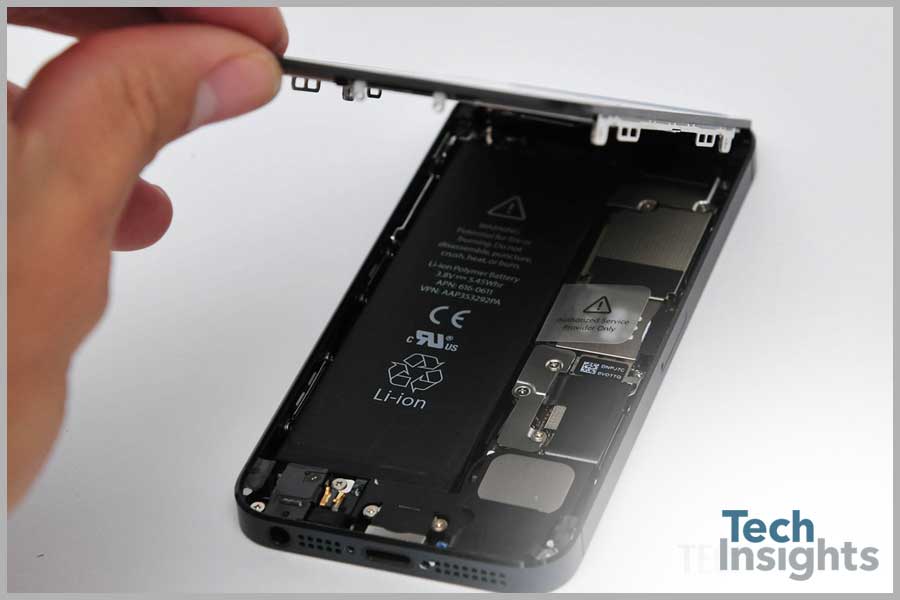

A closer look inside the iPhone 5
For the fact that there are different flavors of the iPhone 5 – ours is the A1428 model, optimized for the AT&T and Canada’s LTE networks.
One of Apple’s keys to success is their component selection. Under the direction of then Senior VP of Supply Chain, and now current CEO, Tim Cook, Apple developed supplier relationships from the development of the very first iPhone that have only strengthened with every iteration of the handset. From a supply chain point-of-view, what this tells us is that Apple is relatively set in their partnerships with semiconductor manufacturers – making opportunities for those manufacturers not currently entrenched with Apple nearly non-existent. For example, ten manufacturers who found themselves with design wins in the original iPhone, found themselves with the same socket wins within the iPhone 5. A quick look inside Apple’s latest handset reveals that larger semiconductor manufacturers like Samsung, Texas Instruments and ST Microelectronics are a large part of the iPhone’s development and smaller companies like Dialog Semiconductor (provider of the main power management IC), Skyworks (providers of the baseband power amplifier modules) and TriQuint (providers of the power amplifier modules) continue to gain massively with their socket wins inside the iPhone 5.
Apple iPhone 5 Board Shots
In fact, it is often major news when Apple does decide to replace a manufacturer on a key component selected for the iPhone. For example, it was newsworthy when Apple made the switch from utilizing Infineon-manufactured baseband processors to those from Qualcomm. That transition was made rather slowly though, as Apple created a GSM version of the iPhone 4 using an Infineon baseband processor and a CDMA version of the same handset using Qualcomm’s baseband chip. The switch to Qualcomm seemed imminent as the IC selected for the CDMA version, had GSM capability. To the surprise of few, the iPhone 5 continues to use Qualcomm baseband circuitry.
The iPhone 5 also heralds Apple’s move into the 4G wireless landscape. Apple’s latest handset is the first to incorporate LTE baseband, matching the baseband capability of the 3rd generation iPad. Within this handset lies three design wins for Qualcomm, all relative to their LTE technology. The “crown jewel” of these ICs is the MDM9615. This device, manufactured at the 28nm process node, is a mobile data modem that supports LTE (FDD and TDD), DC-HSPA+, EV-DO Rev-B and TD-SCDMA, making it a truly global baseband IC – capable of functioning on any carrier. With the MDM9615 are the natural pairs of the PM8018 power management IC and the RTR8600 quad-band transceiver with GPS. All three are part of Qualcomm’s LTE ecosystem and were selected because of their operability with each other.
Costing Comparison for the iPhone 4, iPhone 4S and iPhone 5
Returning to what is now their sixth appearance within the iPhone 5, is STMicroelectronics paired accelerometers – the L3G4200DH 3-axis digital MEMS gyroscope and the LIS331DLH 3-Axis MEMS accelerometer. Apple feels very comfortable with both of these devices and one wonders if Nintendo will continue to use these same ICs as well in their next console, the Wii U.

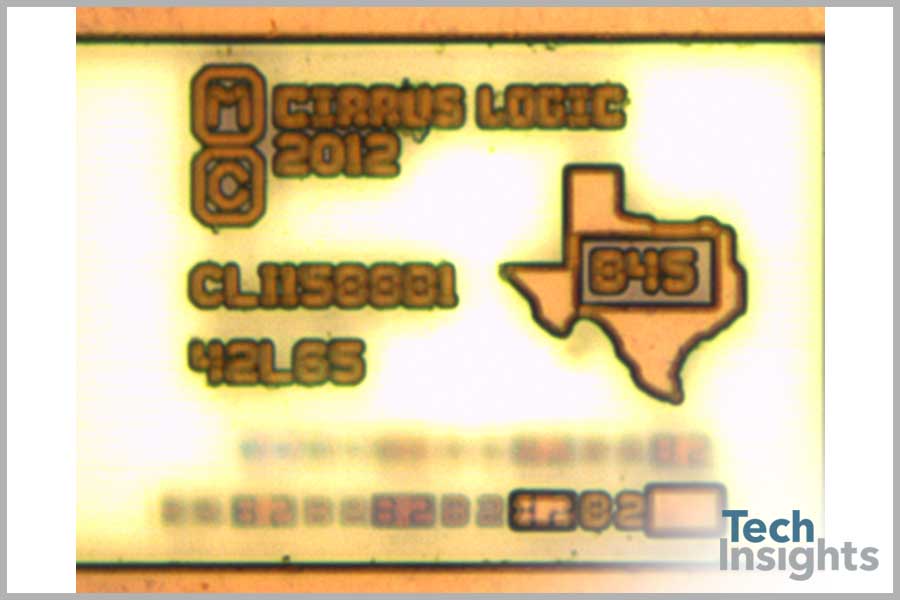

Speaking of familiar manufacturers, Dialog Semiconductor retains its Power Management IC socket with a new device, the Agatha II, or the D2013. Cirrus Logic also retains their audio codec in the iPhone family as well.
For the memory on the iPhone 5, the 32 GB of NAND flash on our device is provided by SanDisk. The processor memory is found on a package-on-package (PoP) with the A6 applications processor. For our handset, our PoP utilized Elpida’s B8164B3PM 1 GB Low-Power DDR2 (LPDDR2) SDRAM.
Lastly, Broadcom maintains its key design wins in the iPhone 5 with the major win being Broadcom’s BCM4334 single-chip dual-band 802.11n, Bluetooth 4.0+HS & FM receiver combo chip providing the wireless connectivity to the handset. This same die was found within the Samsung Galaxy S3 so suffice to say, this combo device is the current king of WiFi.

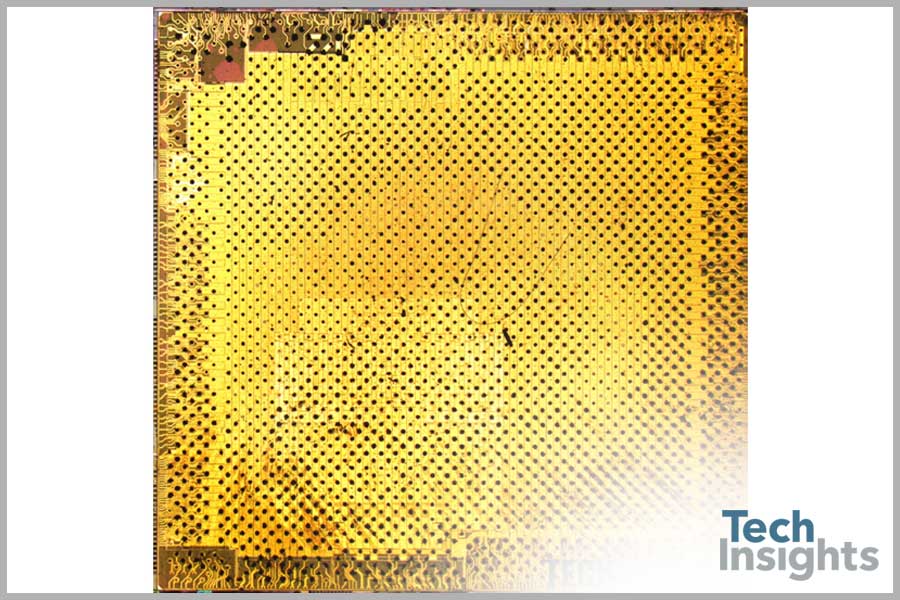

Dissecting the A6 Processor
Apple has also used this iteration of the iPhone to introduce their latest processor, the much anticipated multi-core CPU and quad-core GPU A6 processor. There were many questions about this Apple custom-designed new processor - the most intriguing of which was the mystery behind the number of cores in the CPU and what type of cores are they. Would we be looking at a quad-core ARM Cortex-A9 implementation of the A6, or were we looking at a dual-core processor powered by ARM’s latest cores, the Cortex-A15? Apple has promised twice the performance of the A5 and twice the graphics capability.
Where the A6 is being fabricated was also a mystery. Apple has partnered with Samsung for every generation of the A”x” family of processors but recent litigious activities over patents related to competing handsets and rumors of a partnership with Taiwanese-based TSMC have led to many wondering who Apple has selected to make the brain of the iPhone 5. An early analysis of the die markings of the A6 reveal markings that are similar to the Samsung markings found in the A4 and A5 processors.
Also of interest is which ARM core is behind the CPU and if the promises of low power consumption are a tell that Apple has made the move to the 28nm process node. Apple introduced processors manufactured at Samsung’s 32nm process node with the A5 found in the 2nd generation Apple TV but TSMC has been in mass production with 28nm for quite some time now. We’re doing a cross-section to verify the process, but the die shrink of 95.04 mm2 is much smaller than the 162.54 mm2 of the Apple A5X processor and the 45nm version of the A5 processor which was also a large 122.21 mm2.
So there is it, the heart of the Apple’s family of product cut wide open for all the world to see. Based on early sales figures, this latest version of the iPhone has struck a chord with consumers and the love affair with the sleekly designed handset will continue for many across the world today.
Comparison of APL series applications processors

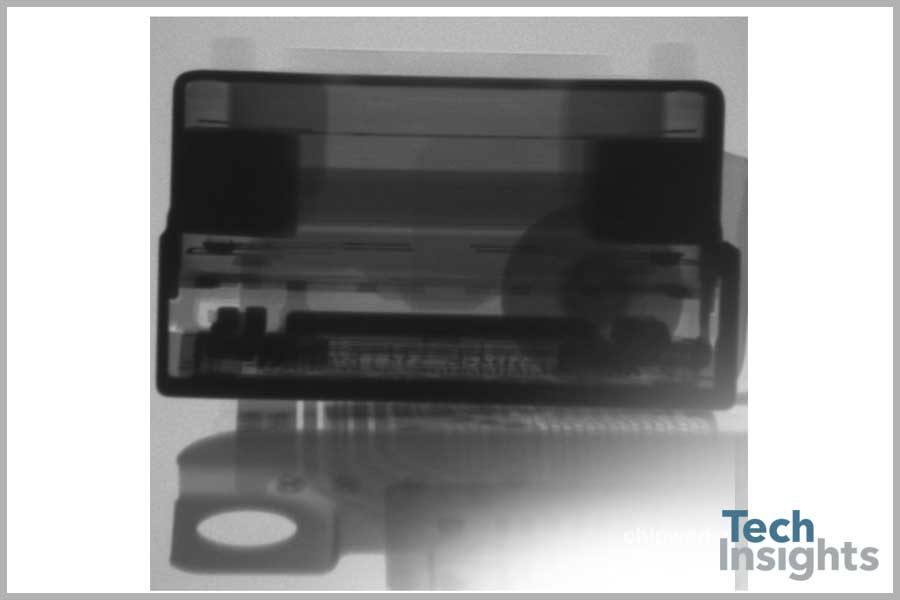

Primary Camera - Design win by Sony

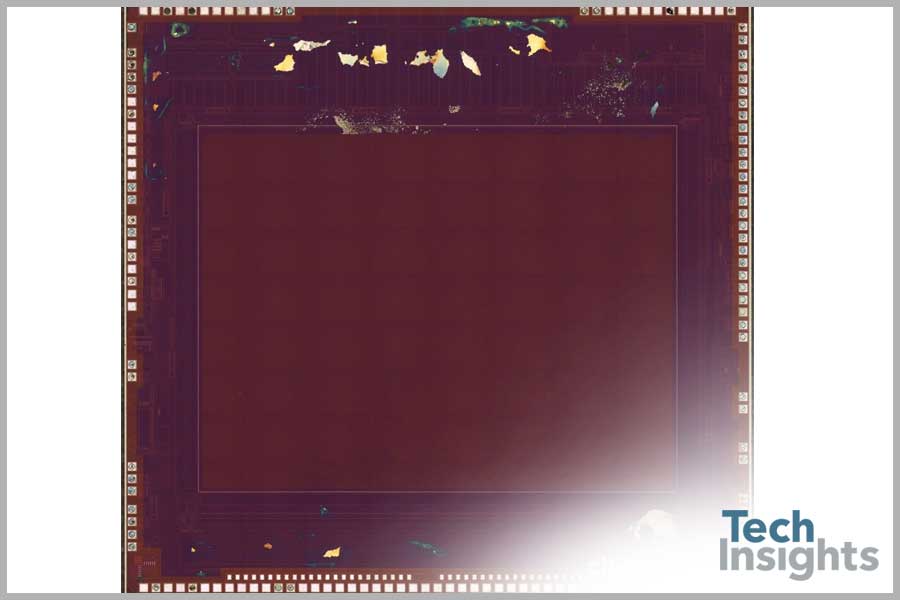

Unlike the prior generation iPhone 4S that had an IMX145, infra-red imaging did not show the same die markings. Only a lonely little "SONY". When we measured the pixel, we did find it to be 1.4 µm, similar to the IMX145 and we know that the published specifications are also similar. Further analysis will determine the unique features of this sensor.
The companies in question are only in such a marquee product because they are innovative, have solid supply chains, drive down cost, and deliver excellent image quality.
Sony Sensor Features:
- Resolution = 8 Mp
- Module dimensions = 8.0 mm x 8.7 mm x 5.2 mm
- Pixel Size = 1.4 µm, back illuminated
- Die size = 6.15 mm x 5.81 mm

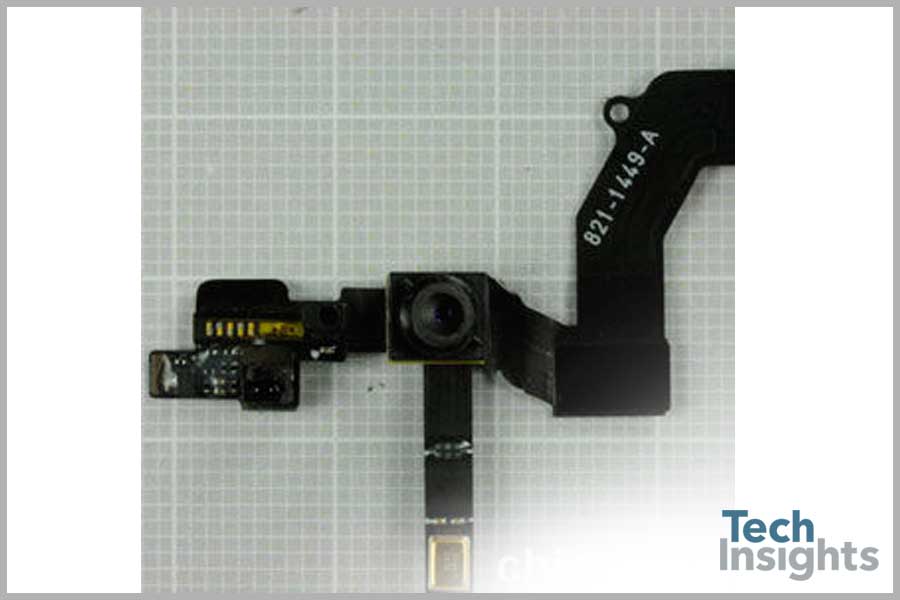

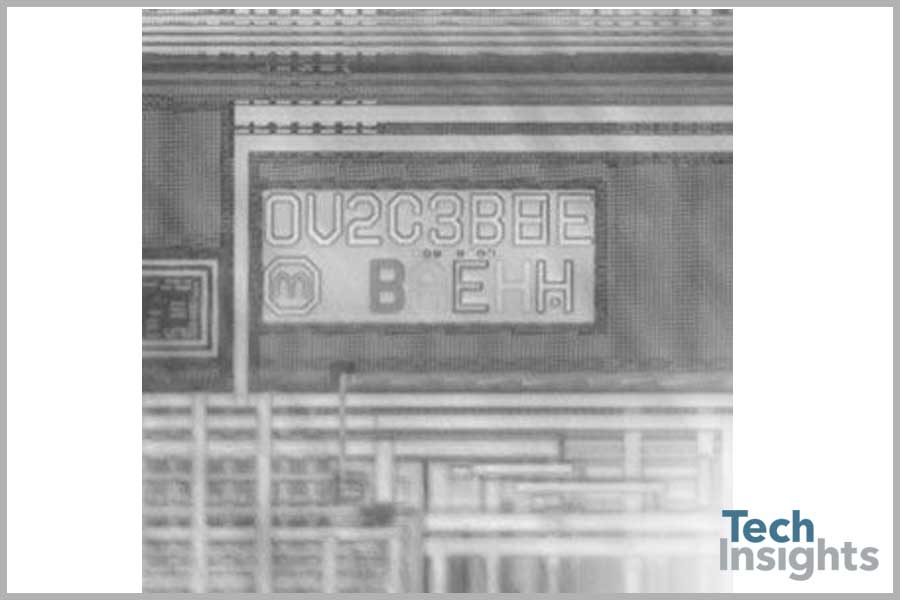

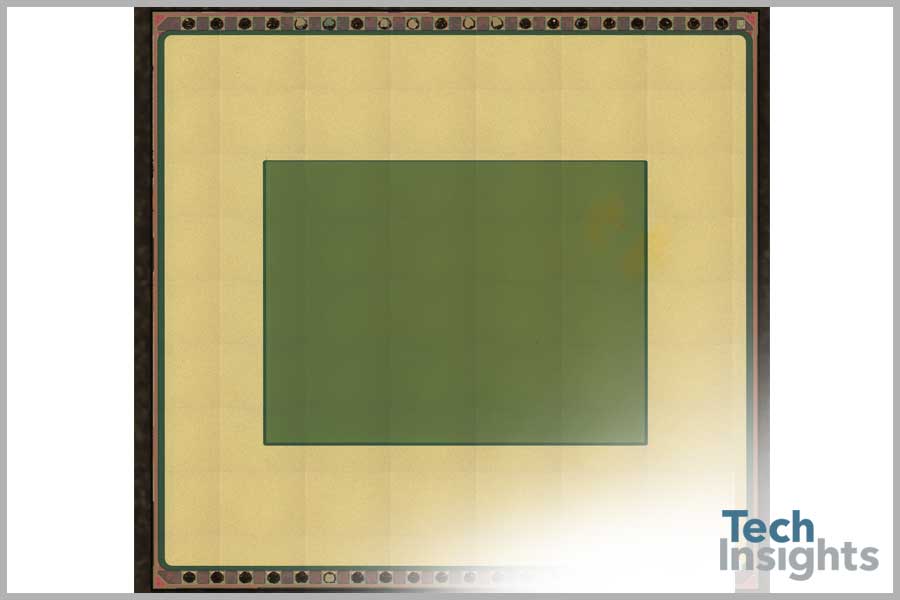

OmniVision Sensor Features:
- Resolution = 1.2 Mp
- Module dimensions = 5.5 mm x 6.0 mm x 3.6 mm
- Pixel Size = 1.75 µm pixel size, back-illuminated
- Die size = 3.35 mm x 4.15 mm
What is impressive about these sensors, and the whole system in general, is how Apple has delivered a thinner (and lighter) phone. If you allow us a bit of a digression, achieving this is likely a combination of several things including a thin touch screen with fewer layers, a thin battery, and the use of thin camera modules using the latest technology. The battery is just a battery so a picture will do.
In conclusion, the camera modules are amazing pieces of technology in and of themselves, and what the image sensor manufacturers have been able to achieve to deliver high quality shots with very tiny pixels is nothing short of amazing. In total they contribute to a phone that seems to be substantially new, despite what many of the early reviews felt. (the author) is no Apple fan-boy, but to give credit where it is due (unlike the iPhone 4S and maybe even the iPhone 3), the iPhone 5 seems to be the culmination of several useful and valuable tweaks to result in a genuinely better overall system. You will hear more about this when we post depots of all the major silicon.
